MGGN
| ORDERING Code | b | r | l | d | t | Grade | ||
| AC5525P | AP0525 | AP6525P | ||||||
| MGGN200-AU | 2.0 | 0.2 | 16 | 1.6 | 3.5 | ○ | ||
| MGGN250-AU | 2.5 | 0.2 | 18.5 | 2.0 | 3.85 | ○ | ||
| MGGN300-AU | 3.0 | 0.4 | 21 | 2.35 | 4.8 | ○ | ||
| MGGN400-AU | 4.0 | 0.4 | 21 | 3.3 | 4.8 | ○ | ||
| MGGN500-AU | 5.0 | 0.4 | 26 | 4.1 | 5.8 | ○ | ||
| MGGN600-AU | 6.0 | 0.8 | 26 | 5.0 | 5.8 | ○ | ||
Grooving Insert
MGMN
| ORDERING Code | b | r | l | d | t | Grade | ||
| AC5525P | AP0525 | AP6525P | ||||||
| MGMN150J | 1.5 | 0.15 | 16 | 1.2 | 3.5 | ○ | ○ | ○ |
| MGMN200C | 2.0 | 0.2 | 16 | 1.6 | 3.5 | ○ | ○ | ○ |
| MGMN20OJ | 2.0 | 0.2 | 16 | 1.6 | 3.5 | ○ | ○ | ○ |
| MGMN250C | 2.5 | 0.2 | 18.5 | 2.0 | 3.85 | ○ | ○ | ○ |
| MGMN250J | 2.5 | 0.2 | 18.5 | 2 | 3.85 | ○ | ○ | ○ |
| MGMN300C | 3.0 | 0.4 | 21 | 2.35 | 4.8 | ○ | ○ | ○ |
| MGMN300J | 3.0 | 0.4 | 21 | 2.35 | 4.8 | ○ | ○ | ○ |
| MGMN400C | 4.0 | 0.4 | 21 | 3.3 | 4.8 | ○ | ○ | ○ |
| MGMN400J | 4.0 | 0.4 | 21 | 3.3 | 4.8 | ○ | ○ | ○ |
| MGMN500C | 5.0 | 0.4 | 26 | 4.1 | 5.8 | ○ | ○ | ○ |
| MGMN500J | 5.0 | 0.4 | 26 | 4.1 | 5.8 | ○ | ○ | ○ |
| MGMN600C | 6.0 | 0.8 | 26 | 5.0 | 5.8 | ○ | ○ | ○ |
| MGMN600J | 6.0 | 0.8 | 26 | 5.0 | 5.8 | ○ | ○ | ○ |
Grooving Insert
MRMN
| ORDERING Code | b | r | l | d | t | Grade | ||
| AC5525P | AP0525 | AP6525P | ||||||
| MRMN200-MTK | 2.0 | 1.0 | 16 | 1.5 | 3.5 | ○ | ○ | ○ |
| MRMN300-MTK | 3.0 | 1.5 | 21 | 2.35 | 4.8 | ○ | ○ | ○ |
| MRMN400-MTK | 4.0 | 2.0 | 21 | 3.3 | 4.8 | ○ | ○ | ○ |
| MRMN500-MTK | 5.0 | 2.5 | 26 | 4.1 | 5.8 | ○ | ○ | ○ |
| MRMN600-MTK | 6.0 | 3.0 | 26 | 5.0 | 5.8 | ○ | ○ | ○ |
Grooving insert
TG-000C
| ORDERING Code | Insert size | W | r | M | K | l | h | Grade | ||
| AC5525P | AP0525 | AP6525P | ||||||||
| TG300-C | 3 | 3.0 | 0.2 | 2.4 | 0 | 20 | 4.7 | ○ | ○ | ○ |
| TG400-C | 4 | 4.0 | 0.3 | 3.0 | 0 | 20 | 4.7 | ○ | ○ | ○ |
| TG500-C | 5 | 5.0 | 0.3 | 4.0 | 0 | 25 | 5.2 | ○ | ○ | ○ |
Grooving insert

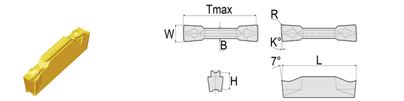

TG-000J
| ORDERING Code | Insert size | W | r | B | L | K | h | Grade | ||
| AC5525P | AP0525 | AP6525P | ||||||||
| TG200-J-R-15D | 2 | 2.0 | 0.2 | 1.7 | 20 | 15 | 4.7 | ○ | ○ | ○ |
| TG200-J-R-6D | 2 | 2.0 | 0.2 | 1.7 | 20 | 6 | 4.7 | ○ | ○ | ○ |
| TG300-J | 3 | 3.0 | 0.2 | 2.4 | 20 | 0 | 4.7 | ○ | ○ | ○ |
| TG300-J-R-15D | 3 | 3.0 | 0.2 | 2.4 | 20 | 15 | 4.7 | ○ | ○ | ○ |
| TG300-J-R-6D | 3 | 3.0 | 0.2 | 2.4 | 20 | 6 | 4.7 | ○ | ○ | ○ |
| TG400-J | 4 | 4.0 | 0.3 | 3.0 | 20 | 0 | 4.7 | ○ | ○ | ○ |
| TG400-J-R-4D | 4 | 4.0 | 0.3 | 3.0 | 20 | 4 | 4.7 | ○ | ○ | ○ |
| TG400-J-R-6D | 4 | 4.0 | 0.3 | 3.0 | 20 | 6 | 4.7 | ○ | ○ | ○ |
| TG500-J | 5 | 5.0 | 0.3 | 4.0 | 25.0 | 0 | 5.2 | ○ | ○ | ○ |
| TG500-J-R-4D | 5 | 5.0 | 0.3 | 4.0 | 25.0 | 4 | 5.2 | ○ | ○ | ○ |
Grooving insert
TG-000T
| ORDERING Code | Insert size | W | r | M | l | h | Grade | ||
| AC5525P | AP0525 | AP6525P | |||||||
| TG-200T | 2 | 2.0 | 0.2 | 1.7 | 20.0 | 4.7 | ○ | ○ | ○ |
| TG-300T | 3 | 3.0 | 0.4 | 2.2 | 20.0 | 4.7 | ○ | ○ | ○ |
| TG-400T | 4 | 4.0 | 0.4 | 3.0 | 20.0 | 4.7 | ○ | ○ | ○ |
| TG-500T | 5 | 5.0 | 0.4 | 4.0 | 25.0 | 5.2 | ○ | ○ | ○ |
Parting insert
SP000-TK
| ORDERING Code | W | I | R | Grade | |
| AC5135 | AC0525 | ||||
| SP200-TK | 2.2 | 9.3 | 0.2 | ○ | ○ |
| SP300-TK | 3.1 | 11.3 | 0..2 | ○ | ○ |
| SP400-TK | 4.1 | 11.3 | 0.25 | ○ | ○ |
| SP500-TK | 5.1 | 11.4 | 0.3 | ○ | ○ |
| SP600-TK | 6.4 | 11.4 | 0.35 | ○ | ○ |
