When high-speed cutting of hardened ceramic excellent performance. (52~68HRC).
Excellent wear resistance.
Precision tolerances applied to suitable for semiconductor, mold, electronics and precision machining.
excellent for high-quality, high-efficiency machining.
 |
Size | D Tolerance | |||||
| D≦∅6 | +0 ~ – 0.01mm | ||||||
| D>∅6 | +0 ~ – 0.015mm | ||||||

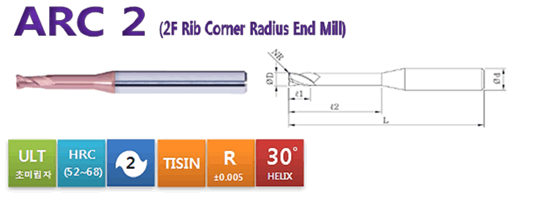

| Order Number | Diameter RXD | Length of cut L1 | Effective Length L2 | Overall Length L | Shank Dia d | ||
| ARC 2 020 001 060 045 | 2XR0.1 | 2.5 | 6 | 45 | 4 | ||
| ARC 2 020 001 080 045 | 2XR0.1 | 2.5 | 8 | 45 | 4 | ||
| ARC 2 020 001 100 050 | 2XR0.1 | 2.5 | 10 | 50 | 4 | ||
| ARC 2 020 001 120 050 | 2XR0.1 | 2.5 | 12 | 50 | 4 | ||
| ARC 2 020 001 160 050 | 2XR0.1 | 2.5 | 16 | 50 | 4 | ||
| ARC 2 020 002 060 045 | 2XR0.2 | 2.5 | 6 | 45 | 4 | ||
| ARC 2 020 002 080 045 | 2XR0.2 | 2.5 | 8 | 45 | 4 | ||
| ARC 2 020 002 100 050 | 2XR0.2 | 2.5 | 10 | 50 | 4 | ||
| ARC 2 020 002 120 050 | 2XR0.2 | 2.5 | 12 | 50 | 4 | ||
| ARC 2 020 002 160 050 | 2XR0.2 | 2.5 | 16 | 50 | 4 | ||
| ARC 2 020 003 060 045 | 2XR0.3 | 2.5 | 6 | 45 | 4 | ||
| ARC 2 020 003 080 045 | 2XR0.3 | 2.5 | 8 | 45 | 4 | ||
| ARC 2 020 003 100 050 | 2XR0.3 | 2.5 | 10 | 50 | 4 | ||
| ARC 2 020 003 120 050 | 2XR0.3 | 2.5 | 12 | 50 | 4 | ||
| ARC 2 020 003 160 050 | 2XR0.3 | 2.5 | 16 | 50 | 4 | ||
| ARC 2 020 005 060 045 | 2XR0.5 | 2.5 | 6 | 45 | 4 | ||
| ARC 2 020 005 080 045 | 2XR0.5 | 2.5 | 8 | 45 | 4 | ||
| ARC 2 020 005 100 050 | 2XR0.5 | 2.5 | 10 | 50 | 4 | ||
| ARC 2 020 005 120 050 | 2XR0.5 | 2.5 | 12 | 50 | 4 | ||
| ARC 2 020 005 160 050 | 2XR0.5 | 2.5 | 16 | 50 | 4 | ||
| ARC 2 030 001 120 055 | 3XR0.1 | 3.5 | 12 | 55 | 6 | ||
| ARC 2 030 001 160 055 | 3XR0.1 | 3.5 | 16 | 55 | 6 | ||
| ARC 2 030 001 200 060 | 3XR0.1 | 3.5 | 20 | 60 | 6 | ||
| ARC 2 030 002 100 050 | 3XR0.2 | 3.5 | 10 | 50 | 6 | ||
| ARC 2 030 002 120 055 | 3XR0.2 | 3.5 | 12 | 55 | 6 | ||
| ARC 2 030 002 160 055 | 3XR0.2 | 3.5 | 16 | 55 | 6 | ||
| ARC 2 030 002 200 060 | 3XR0.2 | 3.5 | 20 | 60 | 6 | ||
| ARC 2 030 002 250 065 | 3XR0.2 | 3.5 | 25 | 65 | 6 | ||
| ARC 2 030 003 100 050 | 3XR0.3 | 3.5 | 10 | 50 | 6 | ||
| ARC 2 030 003 120 055 | 3XR0.3 | 3.5 | 12 | 55 | 6 | ||
| ARC 2 030 003 160 055 | 3XR0.3 | 3.5 | 16 | 55 | 6 | ||
| ARC 2 030 003 200 060 | 3XR0.3 | 3.5 | 20 | 60 | 6 | ||
| ARC 2 030 005 100 050 | 3XR0.5 | 3.5 | 10 | 50 | 6 | ||
| ARC 2 030 005 120 055 | 3XR0.5 | 3.5 | 12 | 55 | 6 | ||
| ARC 2 030 005 160 055 | 3XR0.5 | 3.5 | 16 | 55 | 6 | ||
| ARC 2 030 005 200 060 | 3XR0.5 | 3.5 | 20 | 60 | 6 | ||
| ARC 2 030 005 250 065 | 3XR0.5 | 3.5 | 25 | 65 | 6 | ||
| ARC 2 040 001 200 070 | 4XR0.1 | 4.5 | 20 | 70 | 4 | ||
| ARC 2 040 001 120 055 | 4XR0.1 | 4.5 | 12 | 55 | 6 | ||
| ARC 2 040 001 160 055 | 4XR0.1 | 4.5 | 16 | 55 | 6 | ||
| ARC 2 040 001 200 060 | 4XR0.1 | 4.5 | 20 | 60 | 6 | ||
| ARC 2 040 001 250 065 | 4XR0.1 | 4.5 | 25 | 65 | 6 | ||
| ARC 2 040 001 300 070 | 4XR0.1 | 4.5 | 30 | 70 | 6 | ||
| ARC 2 040 002 020 070 | 4XR0.2 | 4.5 | 20 | 70 | 4 | ||
| ARC 2 040 002 120 055 | 4XR0.2 | 4.5 | 12 | 55 | 6 | ||
| ARC 2 040 002 160 055 | 4XR0.2 | 4.5 | 16 | 55 | 6 | ||
| ARC 2 040 002 200 060 | 4XR0.2 | 4.5 | 20 | 60 | 6 | ||
| ARC 2 040 002 250 065 | 4XR0.2 | 4.5 | 25 | 65 | 6 | ||
| ARC 2 040 002 300 070 | 4XR0.2 | 4.5 | 30 | 70 | 6 | ||
| ARC 2 040 003 200 070 | 4XR0.3 | 4.5 | 20 | 70 | 4 | ||
| ARC 2 040 003 120 055 | 4XR0.3 | 4.5 | 12 | 55 | 6 | ||
| ARC 2 040 003 160 055 | 4XR0.3 | 4.5 | 16 | 55 | 6 | ||
| ARC 2 040 003 200 060 | 4XR0.3 | 4.5 | 20 | 60 | 6 | ||
| ARC 2 040 003 250 065 | 4XR0.3 | 4.5 | 25 | 65 | 6 | ||
| ARC 2 040 003 300 070 | 4XR0.3 | 4.5 | 30 | 70 | 6 | ||
| ARC 2 040 005 200 070 | 4XR0.5 | 4.5 | 20 | 70 | 4 | ||
| ARC 2 040 005 120 055 | 4XR0.5 | 4.5 | 12 | 55 | 6 | ||
| ARC 2 040 005 160 055 | 4XR0.5 | 4.5 | 16 | 55 | 6 | ||
| ARC 2 040 005 200 060 | 4XR0.5 | 4.5 | 20 | 60 | 6 | ||
| ARC 2 040 005 250 065 | 4XR0.5 | 4.5 | 25 | 65 | 6 | ||
| ARC 2 040 005 300 070 | 4XR0.5 | 4.5 | 30 | 70 | 6 | ||
| ARC 2 040 010 120 055 | 4XR1.0 | 4.5 | 12 | 55 | 6 | ||
| ARC 2 040 010 160 055 | 4XR1.0 | 4.5 | 16 | 55 | 6 | ||
| ARC 2 040 010 200 060 | 4XR1.0 | 4.5 | 20 | 60 | 6 | ||
| ARC 2 050 002 150 060 | 5XR0.2 | 6 | 15 | 60 | 6 | ||
| ARC 2 050 005 200 060 | 5XR0.5 | 6 | 20 | 60 | 6 | ||
| ARC 2 060 001 200 060 | 6XR0.1 | 7 | 20 | 60 | 6 | ||
| ARC 2 060 001 300 080 | 6XR0.1 | 7 | 30 | 80 | 6 | ||
| ARC 2 060 002 200 060 | 6XR0.2 | 7 | 20 | 60 | 6 | ||
| ARC 2 060 002 300 080 | 6XR0.2 | 7 | 30 | 80 | 6 | ||
| ARC 2 060 003 200 060 | 6XR0.3 | 7 | 20 | 60 | 6 | ||
| ARC 2 060 003 300 080 | 6XR0.3 | 7 | 30 | 80 | 6 | ||
| ARC 2 060 005 200 060 | 6XR0.5 | 7 | 20 | 60 | 6 | ||
| ARC 2 060 005 300 080 | 6XR0.5 | 7 | 30 | 80 | 6 | ||
| ARC 2 060 010 200 060 | 6XR1.0 | 7 | 20 | 60 | 6 | ||
| ARC 2 060 010 300 080 | 6XR1.0 | 7 | 30 | 80 | 6 | ||
| ARC 2 080 002 250 070 | 8XR0.2 | 9 | 25 | 70 | 8 | ||
| ARC 2 080 002 400 100 | 8XR0.2 | 9 | 40 | 100 | 8 | ||
| ARC 2 080 003 250 070 | 8XR0.3 | 9 | 25 | 70 | 8 | ||
| ARC 2 080 005 250 070 | 8XR0.5 | 9 | 25 | 70 | 8 | ||
| ARC 2 080 010 250 070 | 8XR1.0 | 9 | 25 | 70 | 8 | ||
| ARC 2 100 005 250 080 | 10XR0.5 | 11 | 25 | 80 | 10 | ||
| ARC 2 100 010 250 080 | 10XR1.0 | 11 | 25 | 80 | 10 | ||
| ARC 2 100 015 250 080 | 10XR1.5 | 11 | 25 | 80 | 10 | ||
| ARC 2 100 020 250 080 | 10XR2.0 | 11 | 25 | 80 | 10 | ||
| ARC 2 120 005 300 080 | 12XR0.5 | 13 | 30 | 80 | 12 | ||
| ARC 2 120 010 300 080 | 12XR1.0 | 13 | 30 | 80 | 12 | ||
| ARC 2 120 020 300 080 | 12XR2.0 | 13 | 30 | 80 | 12 | ||
| ARC 4 020 001 060 045 | 2XR0.1 | 2 | 6 | 45 | 4 | ||
| ARC 4 020 001 080 045 | 2XR0.1 | 2 | 8 | 45 | 4 | ||
| ARC 4 020 001 100 050 | 2XR0.1 | 2 | 10 | 50 | 4 | ||
| ARC 4 020 001 120 050 | 2XR0.1 | 2 | 12 | 50 | 4 | ||
| ARC 4 020 001 160 050 | 2XR0.1 | 2 | 16 | 50 | 4 | ||
| ARC 4 020 002 060 045 | 2XR0.2 | 2 | 6 | 45 | 4 | ||
| ARC 4 020 002 080 045 | 2XR0.2 | 2 | 8 | 45 | 4 | ||
| ARC 4 020 002 100 050 | 2XR0.2 | 2 | 10 | 50 | 4 | ||
| ARC 4 020 002 120 050 | 2XR0.2 | 2 | 12 | 50 | 4 | ||
| ARC 4 020 002 160 050 | 2XR0.2 | 2 | 16 | 50 | 4 | ||
| ARC 4 020 003 060 045 | 2XR0.3 | 2 | 6 | 45 | 4 | ||
| ARC 4 020 003 080 045 | 2XR0.3 | 2 | 8 | 45 | 4 | ||
| ARC 4 020 003 100 050 | 2XR0.3 | 2 | 10 | 50 | 4 | ||
| ARC 4 020 003 120 050 | 2XR0.3 | 2 | 12 | 50 | 4 | ||
| ARC 4 020 003 160 050 | 2XR0.3 | 2 | 16 | 50 | 4 | ||
| ARC 4 020 005 060 045 | 2XR0.5 | 2 | 6 | 45 | 4 | ||
| ARC 4 020 005 080 045 | 2XR0.5 | 2 | 8 | 45 | 4 | ||
| ARC 4 020 005 100 050 | 2XR0.5 | 2 | 10 | 50 | 4 | ||
| ARC 4 020 005 120 050 | 2XR0.5 | 2 | 12 | 50 | 4 | ||
| ARC 4 020 005 160 050 | 2XR0.5 | 2 | 16 | 50 | 4 | ||
| ARC 4 030 001 100 050 | 3XR0.1 | 3 | 10 | 50 | 6 | ||
| ARC 4 030 001 160 055 | 3XR0.1 | 3 | 16 | 55 | 6 | ||
| ARC 4 030 001 200 060 | 3XR0.1 | 3 | 20 | 60 | 6 | ||
| ARC 4 030 002 100 050 | 3XR0.2 | 3 | 10 | 50 | 6 | ||
| ARC 4 030 002 120 055 | 3XR0.2 | 3 | 12 | 55 | 6 | ||
| ARC 4 030 002 160 055 | 3XR0.2 | 3 | 16 | 55 | 6 | ||
| ARC 4 030 002 200 060 | 3XR0.2 | 3 | 20 | 60 | 6 | ||
| ARC 4 030 002 250 065 | 3XR0.2 | 3 | 25 | 65 | 6 | ||
| ARC 4 030 003 100 050 | 3XR0.3 | 3 | 10 | 50 | 6 | ||
| ARC 4 030 003 120 055 | 3XR0.3 | 3 | 12 | 55 | 6 | ||
| ARC 4 030 003 160 055 | 3XR0.3 | 3 | 16 | 55 | 6 | ||
| ARC 4 030 003 200 060 | 3XR0.3 | 3 | 20 | 60 | 6 | ||
| ARC 4 030 005 100 050 | 3XR0.5 | 3 | 10 | 50 | 6 | ||
| ARC 4 030 005 120 055 | 3XR0.5 | 3 | 12 | 55 | 6 | ||
| ARC 4 030 005 160 055 | 3XR0.5 | 3 | 16 | 55 | 6 | ||
| ARC 4 030 005 200 060 | 3XR0.5 | 3 | 20 | 60 | 6 | ||
| ARC 4 030 005 250 065 | 3XR0.5 | 3 | 25 | 65 | 6 | ||
| ARC 4 040 001 200 070 | 4XR0.1 | 4 | 20 | 70 | 4 | ||
| ARC 4 040 001 120 055 | 4XR0.1 | 4 | 12 | 55 | 6 | ||
| ARC 4 040 001 160 055 | 4XR0.1 | 4 | 16 | 55 | 6 | ||
| ARC 4 040 001 200 060 | 4XR0.1 | 4 | 20 | 60 | 6 | ||
| ARC 4 040 001 250 065 | 4XR0.1 | 4 | 25 | 65 | 6 | ||
| ARC 4 040 001 300 070 | 4XR0.1 | 4 | 30 | 70 | 6 | ||
| ARC 4 040 002 200 070 | 4XR0.2 | 4 | 20 | 70 | 4 | ||
| ARC 4 040 002 120 055 | 4XR0.2 | 4 | 12 | 55 | 6 | ||
| ARC 4 040 002 160 055 | 4XR0.2 | 4 | 16 | 55 | 6 | ||
| ARC 4 040 002 200 060 | 4XR0.2 | 4 | 20 | 60 | 6 | ||
| ARC 4 040 002 250 065 | 4XR0.2 | 4 | 25 | 65 | 6 | ||
| ARC 4 040 002 300 070 | 4XR0.2 | 4 | 30 | 70 | 6 | ||
| ARC 4 040 003 200 070 | 4XR0.3 | 4 | 20 | 70 | 4 | ||
| ARC 4 040 003 120 055 | 4XR0.3 | 4 | 12 | 55 | 6 | ||
| ARC 4 040 003 160 055 | 4XR0.3 | 4 | 16 | 55 | 6 | ||
| ARC 4 040 003 200 060 | 4XR0.3 | 4 | 20 | 60 | 6 | ||
| ARC 4 040 003 250 065 | 4XR0.3 | 4 | 25 | 65 | 6 | ||
| ARC 4 040 003 300 070 | 4XR0.3 | 4 | 30 | 70 | 6 | ||
| ARC 4 040 005 200 070 | 4XR0.5 | 4 | 20 | 70 | 4 | ||
| ARC 4 040 005 120 055 | 4XR0.5 | 4 | 12 | 55 | 6 | ||
| ARC 4 040 005 160 055 | 4XR0.5 | 4 | 16 | 55 | 6 | ||
| ARC 4 040 005 200 060 | 4XR0.5 | 4 | 20 | 60 | 6 | ||
| ARC 4 040 005 250 065 | 4XR0.5 | 4 | 25 | 65 | 6 | ||
| ARC 4 040 005 300 070 | 4XR0.5 | 4 | 30 | 70 | 6 | ||
| ARC 4 040 010 120 055 | 4XR1.0 | 4 | 12 | 55 | 6 | ||
| ARC 4 040 010 160 055 | 4XR1.0 | 4 | 16 | 55 | 6 | ||
| ARC 4 040 010 200 060 | 4XR1.0 | 4 | 20 | 60 | 6 | ||
| ARC 4 050 002 150 060 | 5XR0.2 | 5 | 15 | 60 | 6 | ||
| ARC 4 050 005 200 060 | 5XR0.5 | 5 | 20 | 60 | 6 | ||
| ARC 4 060 001 200 060 | 6XR0.1 | 7 | 20 | 60 | 6 | ||
| ARC 4 060 001 300 080 | 6XR0.1 | 7 | 30 | 80 | 6 | ||
| ARC 4 060 002 200 060 | 6XR0.2 | 7 | 20 | 60 | 6 | ||
| ARC 4 060 002 300 080 | 6XR0.2 | 7 | 30 | 80 | 6 | ||
| ARC 4 060 003 200 060 | 6XR0.3 | 7 | 20 | 60 | 6 | ||
| ARC 4 060 003 300 080 | 6XR0.3 | 7 | 30 | 80 | 6 | ||
| ARC 4 060 005 200 060 | 6XR0.5 | 7 | 20 | 60 | 6 | ||
| ARC 4 060 005 300 080 | 6XR0.5 | 7 | 30 | 80 | 6 | ||
| ARC 4 060 010 200 060 | 6XR1.0 | 7 | 20 | 60 | 6 | ||
| ARC 4 060 010 300 080 | 6XR1.0 | 7 | 30 | 80 | 6 | ||
| ARC 4 080 002 250 070 | 8XR0.2 | 9 | 25 | 70 | 8 | ||
| ARC 4 080 002 400 100 | 8XR0.2 | 9 | 40 | 100 | 8 | ||
| ARC 4 080 003 250 070 | 8XR0.3 | 9 | 25 | 70 | 8 | ||
| ARC 4 080 005 250 070 | 8XR0.5 | 9 | 25 | 70 | 8 | ||
| ARC 4 080 010 250 070 | 8XR1.0 | 9 | 25 | 70 | 8 | ||
| ARC 4 100 005 250 080 | 10XR0.5 | 11 | 25 | 80 | 10 | ||
| ARC 4 100 010 250 080 | 10XR1.0 | 11 | 25 | 80 | 10 | ||
| ARC 4 100 015 250 080 | 10XR1.5 | 11 | 25 | 80 | 10 | ||
| ARC 4 100 020 250 080 | 10XR2.0 | 11 | 25 | 80 | 10 | ||
| ARC 4 120 005 300 080 | 12XR0.5 | 13 | 30 | 80 | 12 | ||
| ARC 4 120 010 300 080 | 12XR1.0 | 13 | 30 | 80 | 12 | ||
| ARC 4 120 020 300 080 | 12XR2.0 | 13 | 30 | 80 | 12 | ||
