When high-speed cutting of hardened ceramic excellent performance. (52~68HRC)
Excellent wear resistance.
Precision tolerances applied to suitable for semiconductor, mold, electronics and precision machining.
Excelent for high-qualtiy , high-efficiency machining.

					Size	D Tolerance
					D≦∅6	+0 ~ – 0.01mm
					D>∅6	+0 ~ – 0.015mm

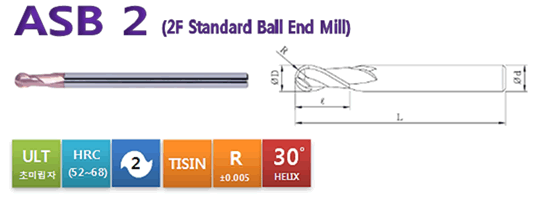

Order Number		Diameter  RXD	Length of cut  L1	Effective Length  L2	Overall Length    L	Shank Dia    d
ASB 2 010 025 050 S04		0.5RX1	2.5	–	50	4
ASB 2 010 025 050 S06		0.5RX1	2.5	–	50	6
ASB 2 015 040 050 S04		0.75RX1.5	4	–	50	4
ASB 2 015 040 050 S06		0.75RX1.5	4	–	50	6
ASB 2 020 050 050 S04		1RX2	6	–	50	4
ASB 2 020 050 050 S06		1RX2	6	–	50	6
ASB 2 030 100 060 S06		1.5RX3	10	–	60	6
ASB 2 040 100 060 S04		2RX4	10	–	60	4
ASB 2 040 100 060 S06		2RX4	10	–	60	6
ASB 2 050 120 060 S06		2.5RX5	12	–	60	6
ASB 2 060 120 060 S06		3RX6	12	–	60	6
ASB 2 060 120 080 S06		3RX6	12	–	80	6
ASB 2 060 120 100 S06		3RX6	12	–	100	6
ASB 2 080 140 080 S08		4RX8	14	–	80	8
ASB 2 080 140 100 S08		4RX8	14	–	100	8
ASB 2 100 180 100 S10		5RX10	18	–	100	10
ACB 2 100 180 130 S10		5RX10	18	–	130	10
ASB 2 100 180 150 S10		5RX10	18	–	150	10
ASB 2 120 220 110 S12		6RX12	22	–	110	12
ASB 2 120 220 130 S12		6RX12	22	–	130	12
ASB 2 120 220 150 S12		6RX12	22	–	150	12
ASB 2 130 240 110 S14		6.5RX13	24	–	110	14
ASB 2 140 240 110 S14		7RX14	24	–	110	14
ASB 2 160 300 110 S16		8RX16	30	–	110	16
ASB 2 160 300 160 S16		8RX16	30	–	160	16
ASB 2 200 380 160 S20		10RX20	38	–	160	20
