ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	SD	FL	OAL		ΦD	SD	FL	OAL
ATS 0021	2.1	3	18	50		2.1	3
ATS 0022	2.2	3	18	50		2.2	3
ATS 0023	2.3	3	18	50		2.3	3
ATS 0024	2.4	3	18	50		2.4	3
ATS 0025	2.5	3	18	50	ATL 1025	2.5	3	30	68
ATS 0026	2.6	3	18	50	ATL 1026	2.6	3	30	68
ATS 0027	2.7	3	18	50	ATL 1027	2.7	3	30	68
ATS 0028	2.8	3	18	50	ATL 1028	2.8	3	30	68
ATS 0029	2.9	3	18	50	ATL 1029	2.9	3	30	68
ATS 0030	3.0	3	20	55	ATL 1030	3.0	3	43	75
ATS 0031	3.1	4	20	55	ATL 1031	3.1	4	43	75
ATS 0032	3.2	4	20	55	ATL 1032	3.2	4	43	75
ATS 0033	3.3	4	20	55	ATL 1033	3.3	4	43	75
ATS 0034	3.4	4	20	55	ATL 1034	3.4	4	43	75
ATS 0035	3.5	4	20	55	ATL 1035	3.5	4	43	75
ATS 0036	3.6	4	25	55	ATL 1036	3.6	4	43	75
ATS 0037	3.7	4	25	55	ATL 1037	3.7	4	43	75
ATS 0038	3.8	4	25	55	ATL 1038	3.8	4	43	75
ATS 0039	3.9	4	25	55	ATL 1039	3.9	4	43	75
ATS 0040	4.0	4	25	55	ATL 1040	4.0	4	43	75
ATS 0041	4.1	5	25	55	ATL 1041	4.1	5	45	80
ATS 0042	4.2	5	33	63	ATL 1042	4.2	5	45	80
ATS 0043	4.3	5	33	63	ATL 1043	4.3	5	45	80
ATS 0044	4.4	5	33	63	ATL 1044	4.4	5	45	80
ATS 0045	4.5	5	33	63	ATL 1045	4.5	5	45	80
ATS 0046	4.6	5	33	63	ATL 1046	4.6	5	45	80
ATS 0047	4.7	5	33	63	ATL 1047	4.7	5	45	80
ATS 0048	4.8	5	33	63	ATL 1048	4.8	5	45	80
ATS 0049	4.9	5	33	63	ATL 1049	4.9	5	45	80
ATS 0050	5.0	5	33	63	ATL 1050	5.0	5	45	80
ATS 0051	5.1	6	33	63	ATL 1051	5.1	6	45	80
ATS 0052	5.2	6	36	66	ATL 1052	5.2	6	50	85
ATS 0053	5.3	6	36	66	ATL 1053	5.3	6	50	85
ATS 0054	5.4	6	36	66	ATL 1054	5.4	6	50	85
ATS 0055	5.5	6	36	66	ATL 1055	5.5	6	50	85
ATS 0056	5.6	6	36	66	ATL 1056	5.6	6	50	85
ATS 0057	5.7	6	36	66	ATL 1057	5.7	6	50	85
ATS 0058	5.8	6	36	66	ATL 1058	5.8	6	50	85
ATS 0059	5.9	6	36	66	ATL 1059	5.9	6	50	85
ATS 0060	6.0	6	36	66	ATL 1060	6.0	6	50	85
ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	SD	FL	OAL		ΦD	SD	FL	OAL
ATS 0061	6.1	7	36	66	ATL 1061	6.1	7	50	85
ATS 0062	6.2	7	42	75	ATL 1062	6.2	7	55	90
ATS 0063	6.3	7	42	75	ATL 1063	6.3	7	55	90
ATS 0064	6.4	7	42	75	ATL 1064	6.4	7	55	90
ATS 0065	6.5	7	42	75	ATL 1065	6.5	7	55	90
ATS 0066	6.6	7	42	75	ATL 1066	6.6	7	55	90
ATS 0067	6.7	7	42	75	ATL 1067	6.7	7	55	90
ATS 0068	6.8	7	42	75	ATL 1068	6.8	7	55	90
ATS 0069	6.9	7	42	75	ATL 1069	6.9	7	55	90
ATS 0070	7.0	7	42	75	ATL 1070	7.0	7	55	90
ATS 0071	7.1	8	42	75	ATL 1071	7.1	8	55	90
ATS 0072	7.2	8	46	80	ATL 1072	7.2	8	60	95
ATS 0073	7.3	8	46	80	ATL 1073	7.3	8	60	95
ATS 0074	7.4	8	46	80	ATL 1074	7.4	8	60	95
ATS 0075	7.5	8	46	80	ATL 1075	7.5	8	60	95
ATS 0076	7.6	8	46	80	ATL 1076	7.6	8	60	95
ATS 0077	7.7	8	46	80	ATL 1077	7.7	8	60	95
ATS 0078	7.8	8	46	80	ATL 1078	7.8	8	60	95
ATS 0079	7.9	8	46	80	ATL 1079	7.9	8	60	95
ATS 0080	8.0	8	46	80	ATL 1080	8.0	8	60	95
ATS 0081	8.1	9	46	80	ATL 1081	8.1	9	60	95
ATS 0082	8.2	9	50	85	ATL 1082	8.2	9	65	100
ATS 0083	8.3	9	50	85	ATL 1083	8.3	9	65	100
ATS 0084	8.4	9	50	85	ATL 1084	8.4	9	65	100
ATS 0085	8.5	9	50	85	ATL 1085	8.5	9	65	100
ATS 0086	8.6	9	50	85	ATL 1086	8.6	9	65	100
ATS 0087	8.7	9	50	85	ATL 1087	8.7	9	65	100
ATS 0088	8.8	9	50	85	ATL 1088	8.8	9	65	100
ATS 0089	8.9	9	50	85	ATL 1089	8.9	9	65	100
ATS 0090	9.0	9	50	85	ATL 1090	9.0	9	65	100
ATS 0091	9.1	10	50	85	ATL 1091	9.1	10	65	100
ATS 0092	9.2	10	55	90	ATL 1092	9.2	10	70	105
ATS 0093	9.3	10	55	90	ATL 1093	9.3	10	70	105
ATS 0094	9.4	10	55	90	ATL 1094	9.4	10	70	105
ATS 0095	9.5	10	55	90	ATL 1095	9.5	10	70	105
ATS 0096	9.6	10	55	90	ATL 1096	9.6	10	70	105
ATS 0097	9.7	10	55	90	ATL 1097	9.7	10	70	105
ATS 0098	9.8	10	55	90	ATL 1098	9.8	10	70	105
ATS 0099	9.9	10	55	90	ATL 1099	9.9	10	70	105
ATS 0100	10.0	10	55	90	ATL 1100	10.0	10	70	105
ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	SD	FL	OAL		ΦD	SD	FL	OAL
ATS 0101	10.1	11	50	90	ATL 1101	10.1	11	70	105
ATS 0102	10.2	11	50	95	ATL 1102	10.2	11	73	108
ATS 0103	10.3	11	50	95	ATL 1103	10.3	11	73	108
ATS 0104	10.4	11	57	95	ATL 1104	10.4	11	73	108
ATS 0105	10.5	11	57	95	ATL 1105	10.5	11	73	108
ATS 0106	10.6	11	57	95	ATL 1106	10.6	11	73	108
ATS 0107	10.7	11	57	95	ATL 1107	10.7	11	73	108
ATS 0108	10.8	11	57	95	ATL 1108	10.8	11	73	108
ATS 0109	10.9	11	57	95	ATL 1109	10.9	11	73	108
ATS 0110	11.0	11	57	95	ATL 1110	11.0	11	73	108
ATS 0111	11.1	12	57	95	ATL 1111	11.1	12	73	108
ATS 0112	11.2	12	63	102	ATL 1112	11.2	12	80	120
ATS 0113	11.3	12	63	102	ATL 1113	11.3	12	80	120
ATS 0114	11.4	12	63	102	ATL 1114	11.4	12	80	120
ATS 0115	11.5	12	63	102	ATL 1115	11.5	12	80	120
ATS 0116	11.6	12	63	102	ATL 1116	11.6	12	80	120
ATS 0117	11.7	12	63	102	ATL 1117	11.7	12	80	120
ATS 0118	11.8	12	63	102	ATL 1118	11.8	12	80	120
ATS 0119	11.9	12	63	102	ATL 1119	11.9	12	80	120
ATS 0120	12.0	12	63	102	ATL 1120	12.0	12	80	120
ATS 0121	12.1	13	63	102	ATL 1121	12.1	13	80	120
ATS 0122	12.2	13	63	102	ATL 1122	12.2	13	90	137
ATS 0123	12.3	13	63	102	ATL 1123	12.3	13	90	137
ATS 0124	12.4	13	63	102	ATL 1124	12.4	13	90	137
ATS 0125	12.5	13	63	102	ATL 1125	12.5	13	90	137
ATS 0126	12.6	13	63	102	ATL 1126	12.6	13	90	137
ATS 0127	12.7	13	63	102	ATL 1127	12.7	13	90	137
ATS 0128	12.8	13	63	102	ATL 1128	12.8	13	90	137
ATS 0129	12.9	13	63	102	ATL 1129	12.9	13	90	137
ATS 0130	13.0	13	63	102	ATL 1130	13.0	13	90	137
ATS 0131	13.1	14	63	102	ATL 1131	13.1	14	90	137
ATS 0132	13.2	14	65	107	ATL 1132	13.2	14	96	147
ATS 0133	13.3	14	65	107	ATL 1133	13.3	14	96	147
ATS 0134	13.4	14	65	107	ATL 1134	13.4	14	96	147
ATS 0135	13.5	14	65	107	ATL 1135	13.5	14	96	147
ATS 0136	13.6	14	65	107	ATL 1136	13.6	14	96	147
ATS 0137	13.7	14	65	107	ATL 1137	13.7	14	96	147
ATS 0138	13.8	14	65	107	ATL 1138	13.8	14	96	147
ATS 0139	13.9	14	65	107	ATL 1139	13.9	14	96	147
ATS 0140	14.0	14	65	107	ATL 1140	14.0	14	96	147
ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	SD	FL	OAL		ΦD	SD	FL	OAL
ATS 0141	14.1	15	65	107	ATL 1141	14.1	15	96	147
ATS 0142	14.2	15	68	115	ATL 1142	14.2	15	100	153
ATS 0143	14.3	15	68	115	ATL 1143	14.3	15	100	153
ATS 0144	14.4	15	68	115	ATL 1144	14.4	15	100	153
ATS 0145	14.5	15	68	115	ATL 1145	14.5	15	100	153
ATS 0146	14.6	15	68	115	ATL 1146	14.6	15	100	153
ATS 0147	14.7	15	68	115	ATL 1147	14.7	15	100	153
ATS 0148	14.8	15	68	115	ATL 1148	14.8	15	100	153
ATS 0149	14.9	15	68	115	ATL 1149	14.9	15	100	153
ATS 0150	15.0	15	68	115	ATL 1150	15.0	15	100	153
ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	Φshank	FL	OAL		ΦD	Φshank	FL	OAL
ATCM 2030	3.0	6	43	75	ATCS 3030	3.0	6	43	75
ATCM 2031	3.1	6	43	75	ATCS 3031	3.1	6	43	75
ATCM 2032	3.2	6	43	75	ATCS 3032	3.2	6	43	75
ATCM 2033	3.3	6	43	75	ATCS 3033	3.3	6	43	75
ATCM 2034	3.4	6	43	75	ATCS 3034	3.4	6	43	75
ATCM 2035	3.5	6	43	75	ATCS 3035	3.5	6	43	75
ATCM 2036	3.6	6	43	75	ATCS 3036	3.6	6	43	75
ATCM 2037	3.7	6	43	75	ATCS 3037	3.7	6	43	75
ATCM 2038	3.8	6	43	75	ATCS 3038	3.8	6	43	75
ATCM 2039	3.9	6	43	75	ATCS 3039	3.9	6	43	75
ATCM 2040	4.0	6	43	75	ATCS 3040	4.0	6	43	75
ATCM 2041	4.1	6	45	80	ATCS 3041	4.1	6	45	80
ATCM 2042	4.2	6	45	80	ATCS 3042	4.2	6	45	80
ATCM 2043	4.3	6	45	80	ATCS 3043	4.3	6	45	80
ATCM 2044	4.4	6	45	80	ATCS 3044	4.4	6	45	80
ATCM 2045	4.5	6	45	80	ATCS 3045	4.5	6	45	80
ATCM 2046	4.6	6	45	80	ATCS 3046	4.6	6	45	80
ATCM 2047	4.7	6	45	80	ATCS 3047	4.7	6	45	80
ATCM 2048	4.8	6	45	80	ATCS 3048	4.8	6	45	80
ATCM 2049	4.9	6	45	80	ATCS 3049	4.9	6	45	80
ATCM 2050	5.0	6	45	80	ATCS 3050	5.0	6	45	80
ATCM 2051	5.1	6	45	80	ATCS 3051	5.1	6	45	80
ATCM 2052	5.2	6	50	85	ATCS 3052	5.2	6	50	85
ATCM 2053	5.3	6	50	85	ATCS 3053	5.3	6	50	85
ATCM 2054	5.4	6	50	85	ATCS 3054	5.4	6	50	85
ATCM 2055	5.5	6	50	85	ATCS 3055	5.5	6	50	85
ATCM 2056	5.6	6	50	85	ATCS 3056	5.6	6	50	85
ATCM 2057	5.7	6	50	85	ATCS 3057	5.7	6	50	85
ATCM 2058	5.8	6	50	85	ATCS 3058	5.8	6	50	85
ATCM 2059	5.9	6	50	85	ATCS 3059	5.9	6	50	85
ATCM 2060	6.0	6	50	85	ATCS 3060	6.0	6	50	85
ATCM 2061	6.1	8	50	85	ATCS 3061	6.1	8	50	85
ATCM 2062	6.2	8	55	90	ATCS 3062	6.2	8	55	90
ATCM 2063	6.3	8	55	90	ATCS 3063	6.3	8	55	90
ATCM 2064	6.4	8	55	90	ATCS 3064	6.4	8	55	90
ATCM 2065	6.5	8	55	90	ATCS 3065	6.5	8	55	90
ATCM 2066	6.6	8	55	90	ATCS 3066	6.6	8	55	90
ATCM 2067	6.7	8	55	90	ATCS 3067	6.7	8	55	90
ATCM 2068	6.8	8	55	90	ATCS 3068	6.8	8	55	90
ATCM 2069	6.9	8	55	90	ATCS 3069	6.9	8	55	90
ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	Φshank	FL	OAL		ΦD	Φshank	FL	OAL
ATCM 2070	7.0	8	55	90	ATCS 3070	7.0	8	60	95
ATCM 2071	7.1	8	55	90	ATCS 3071	7.1	8	60	95
ATCM 2072	7.2	8	60	95	ATCS 3072	7.2	8	60	95
ATCM 2073	7.3	8	60	95	ATCS 3073	7.3	8	60	95
ATCM 2074	7.4	8	60	95	ATCS 3074	7.4	8	60	95
ATCM 2075	7.5	8	60	95	ATCS 3075	7.5	8	60	95
ATCM 2076	7.6	8	60	95	ATCS 3076	7.6	8	60	95
ATCM 2077	7.7	8	60	95	ATCS 3077	7.7	8	65	100
ATCM 2078	7.8	8	60	95	ATCS 3078	7.8	8	65	100
ATCM 2079	7.9	8	60	95	ATCS 3079	7.9	8	65	100
ATCM 2080	8.0	8	60	95	ATCS 3080	8.0	8	65	100
ATCM 2081	8.1	10	60	95	ATCS 3081	8.1	10	65	100
ATCM 2082	8.2	10	65	100	ATCS 3082	8.2	10	65	100
ATCM 2083	8.3	10	65	100	ATCS 3083	8.3	10	65	100
ATCM 2084	8.4	10	65	100	ATCS 3084	8.4	10	65	100
ATCM 2085	8.5	10	65	100	ATCS 3085	8.5	10	65	100
ATCM 2086	8.6	10	65	100	ATCS 3086	8.6	10	65	100
ATCM 2087	8.7	10	65	100	ATCS 3087	8.7	10	70	105
ATCM 2088	8.8	10	65	100	ATCS 3088	8.8	10	70	105
ATCM 2089	8.9	10	65	100	ATCS 3089	8.9	10	70	105
ATCM 2090	9.0	10	65	100	ATCS 3090	9.0	10	70	105
ATCM 2091	9.1	10	65	100	ATCS 3091	9.1	10	70	105
ATCM 2092	9.2	10	70	105	ATCS 3092	9.2	10	70	105
ATCM 2093	9.3	10	70	105	ATCS 3093	9.3	10	70	105
ATCM 2094	9.4	10	70	105	ATCS 3094	9.4	10	70	105
ATCM 2095	9.5	10	70	105	ATCS 3095	9.5	10	70	105
ATCM 2096	9.6	10	70	105	ATCS 3096	9.6	10	70	105
ATCM 2097	9.7	10	70	105	ATCS 3097	9.7	10	73	108
ATCM 2098	9.8	10	70	105	ATCS 3098	9.8	10	73	108
ATCM 2099	9.9	10	70	105	ATCS 3099	9.9	10	73	108
ATCM 2100	10.0	10	70	105	ATCS 3100	10.0	10	73	108
ATCM 2101	10.1	12	70	105	ATCS 3101	10.1	12	73	108
ATCM 2102	10.2	12	73	108	ATCS 3102	10.2	12	73	108
ATCM 2103	10.3	12	73	108	ATCS 3103	10.3	12	73	108
ATCM 2104	10.4	12	73	108	ATCS 3104	10.4	12	73	108
ATCM 2105	10.5	12	73	108	ATCS 3105	10.5	12	73	108
ATCM 2106	10.6	12	73	108	ATCS 3106	10.6	12	73	108
ATCM 2107	10.7	12	73	108	ATCS 3107	10.7	12	73	108
ATCM 2108	10.8	12	73	108	ATCS 3108	10.8	12	73	108
ATCM 2109	10.9	12	73	108	ATCS 3109	10.9	12	73	108
ORDERING No.	Short Series				ORDERING No.	Long Series
	ΦD	Φshank	FL	OAL		ΦD	Φshank	FL	OAL
ATCM 2110	11.0	12	73	108	ATCS 3110	11.0	12	73	108
ATCM 2111	11.1	12	73	108	ATCS 3111	11.1	12	73	108
ATCM 2112	11.2	12	80	120	ATCS 3112	11.2	12	80	120
ATCM 2113	11.3	12	80	120	ATCS 3113	11.3	12	80	120
ATCM 2114	11.4	12	80	120	ATCS 3114	11.4	12	80	120
ATCM 2115	11.5	12	80	120	ATCS 3115	11.5	12	80	120
ATCM 2116	11.6	12	80	120	ATCS 3116	11.6	12	80	120
ATCM 2117	11.7	12	80	120	ATCS 3117	11.7	12	80	120
ATCM 2118	11.8	12	80	120	ATCS 3118	11.8	12	80	120
ATCM 2119	11.9	12	80	120	ATCS 3119	11.9	12	80	120
ATCM 2120	12.0	12	80	120	ATCS 3120	12.0	12	80	120
ATCM 2121	12.1	13	63	102	ATCS 3121	12.1	13	80	120
ATCM 2122	12.2	13	63	102	ATCS 3122	12.2	13	90	137
ATCM 2123	12.3	13	63	102	ATCS 3123	12.3	13	90	137
ATCM 2124	12.4	13	63	102	ATCS 3124	12.4	13	90	137
ATCM 2125	12.5	13	63	102	ATCS 3125	12.5	13	90	137
ATCM 2126	12.6	13	63	102	ATCS 3126	12.6	13	90	137
ATCM 2127	12.7	13	63	102	ATCS 3127	12.7	13	90	137
ATCM 2128	12.8	13	63	102	ATCS 3128	12.8	13	90	137
ATCM 2129	12.9	13	63	102	ATCS 3129	12.9	13	90	137
ATCM 2130	13.0	13	63	102	ATCS 3130	13.0	13	90	137
ATCM 2131	13.1	14	63	102	ATCS 3131	13.1	14	90	137
ATCM 2132	13.2	14	65	107	ATCS 3132	13.2	14	96	147
ATCM 2133	13.3	14	65	107	ATCS 3133	13.3	14	96	147
ATCM 2134	13.4	14	65	107	ATCS 3134	13.4	14	96	147
ATCM 2135	13.5	14	65	107	ATCS 3135	13.5	14	96	147
ATCM 2136	13.6	14	65	107	ATCS 3136	13.6	14	96	147
ATCM 2137	13.7	14	65	107	ATCS 3137	13.7	14	96	147
ATCM 2138	13.8	14	65	107	ATCS 3138	13.8	14	96	147
ATCM 2139	13.9	14	65	107	ATCS 3139	13.9	14	96	147
ATCM 2140	14.0	14	65	107	ATCS 3140	14.0	14	96	147

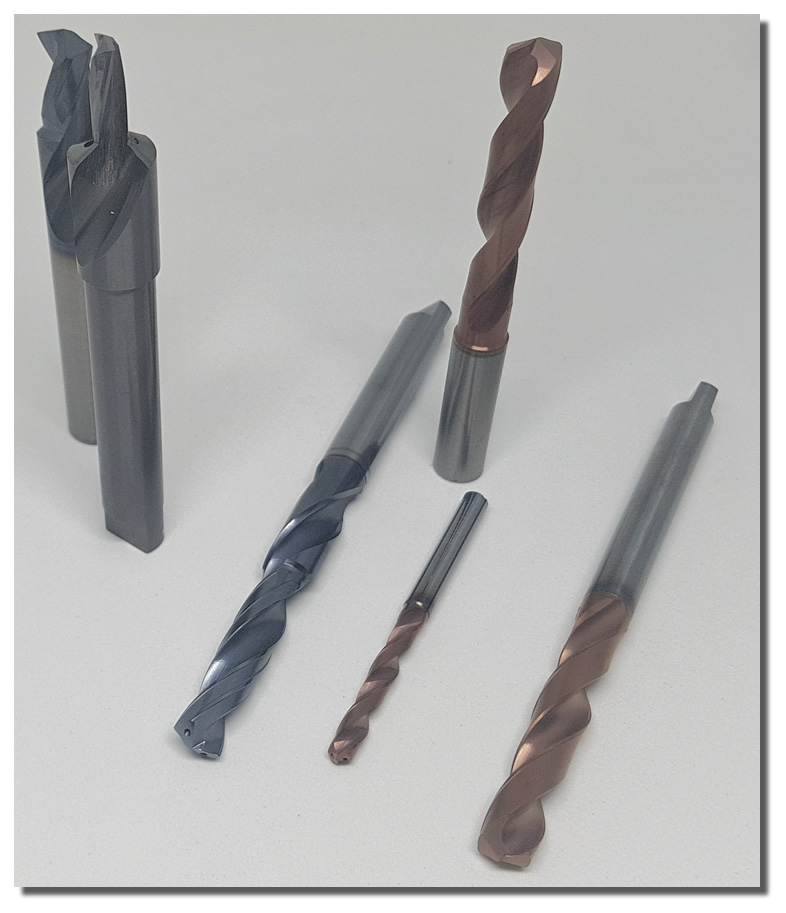

STEP DRILL, SPECIAL DRILL, SPECIAL TOOL
