When high-speed cutting of hardened ceramic excellent performance. (52~68HRC).
Excellent wear resistance.
Precision tolerances applied to suitable for semiconductor, mold, electronics and precision machining.
excellent for high-quality, high-efficiency machining.
 |
Size | D Tolerance | |||||
| D≦∅6 | +0 ~ – 0.01mm | ||||||
| D>∅6 | +0 ~ – 0.015mm | ||||||

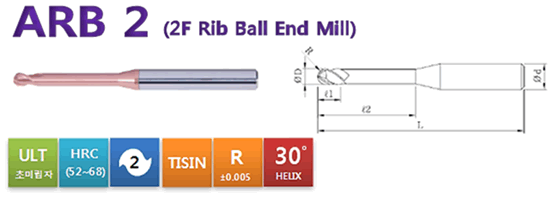

| Order Number | Diameter RXD | Length of cut L1 | Effective Length L2 | Overall Length L | Shank Dia d | ||
| ARB 2 002 005 040 S04 | 0.1RX0.2 | 0.2 | 0.5 | 40 | 4 | ||
| ARB 2 002 010 040 S04 | 0.1RX0.2 | 0.2 | 1 | 40 | 4 | ||
| ARB 2 004 020 040 S04 | 0.2RX0.4 | 0.4 | 2 | 40 | 4 | ||
| ARB 2 004 030 040 S04 | 0.2RX0.4 | 0.4 | 3 | 40 | 4 | ||
| ARB 2 004 040 040 S04 | 0.2RX0.4 | 0.4 | 4 | 40 | 4 | ||
| ARB 2 004 050 040 S04 | 0.2RX0.4 | 0.4 | 5 | 40 | 4 | ||
| ARB 2 004 060 040 S04 | 0.2RX0.4 | 0.4 | 6 | 40 | 4 | ||
| ARB 2 004 080 040 S04 | 0.2RX0.4 | 0.4 | 8 | 40 | 4 | ||
| ARB 2 005 040 045 S04 | 0.25RX0.5 | 0.5 | 4 | 45 | 4 | ||
| ARB 2 005 060 045 S04 | 0.25RX0.5 | 0.5 | 6 | 45 | 4 | ||
| ARB 2 006 040 045 S04 | 0.3RX0.6 | 0.6 | 4 | 45 | 4 | ||
| ARB 2 006 050 045 S04 | 0.3RX0.6 | 0.6 | 5 | 45 | 4 | ||
| ARB 2 006 060 045 S04 | 0.3RX0.6 | 0.6 | 6 | 45 | 4 | ||
| ARB 2 006 080 045 S04 | 0.3RX0.6 | 0.6 | 8 | 45 | 4 | ||
| ARB 2 008 020 045 S04 | 0.4RX0.8 | 0.8 | 2 | 45 | 4 | ||
| ARB 2 008 040 045 S04 | 0.4RX0.8 | 0.8 | 4 | 45 | 4 | ||
| ARB 2 008 060 045 S04 | 0.4RX0.8 | 0.8 | 6 | 45 | 4 | ||
| ARB 2 010 040 050 S04 | 0.5RX1 | 1 | 4 | 50 | 4 | ||
| ARB 2 010 060 050 S04 | 0.5RX1 | 1 | 6 | 50 | 4 | ||
| ARB 2 010 080 050 S04 | 0.5RX1 | 1 | 8 | 50 | 4 | ||
| ARB 2 010 100 050 S04 | 0.5RX1 | 1 | 10 | 50 | 4 | ||
| ARB 2 010 120 050 S04 | 0.5RX1 | 1 | 12 | 50 | 4 | ||
| ARB 2 015 040 050 S04 | 0.75RX1.5 | 1.5 | 4 | 50 | 4 | ||
| ARB 2 015 060 050 S04 | 0.75RX1.5 | 1.5 | 6 | 50 | 4 | ||
| ARB 2 015 080 050 S04 | 0.75RX1.5 | 1.5 | 8 | 50 | 4 | ||
| ARB 2 015 100 050 S04 | 0.75RX1.5 | 1.5 | 10 | 50 | 4 | ||
| ARB 2 015 120 050 S04 | 0.75RX1.5 | 1.5 | 12 | 50 | 4 | ||
| ARB 2 020 060 050 S04 | 1RX2 | 2 | 6 | 50 | 4 | ||
| ARB 2 020 080 050 S04 | 1RX2 | 2 | 8 | 50 | 4 | ||
| ARB 2 020 100 050 S04 | 1RX2 | 2 | 10 | 50 | 4 | ||
| ARB 2 020 120 050 S04 | 1RX2 | 2 | 12 | 50 | 4 | ||
| ARB 2 020 140 050 S04 | 1RX2 | 2 | 14 | 50 | 4 | ||
| ARB 2 020 160 050 S04 | 1RX2 | 2 | 16 | 50 | 4 | ||
| ARB 2 030 100 050 S06 | 1.5RX3 | 3 | 10 | 50 | 6 | ||
| ARB 2 030 120 050 S06 | 1.5RX3 | 3 | 12 | 50 | 6 | ||
| ARB 2 030 160 060 S06 | 1.5RX3 | 3 | 16 | 60 | 6 | ||
| ARB 2 030 200 060 S06 | 1.5RX3 | 3 | 20 | 60 | 6 | ||
| ARB 2 030 250 065 S06 | 1.5RX3 | 3 | 25 | 65 | 6 | ||
| ARB 2 040 100 050 S06 | 2RX4 | 4 | 10 | 50 | 6 | ||
| ARB 2 040 120 050 S06 | 2RX4 | 4 | 12 | 50 | 6 | ||
| ARB 2 040 160 060 S06 | 2RX4 | 4 | 16 | 60 | 6 | ||
| ARB 2 040 200 060 S06 | 2RX4 | 4 | 20 | 60 | 6 | ||
| ARB 2 040 250 065 S06 | 2RX4 | 4 | 25 | 65 | 6 | ||
| ARB 2 040 300 070 S06 | 2RX4 | 4 | 30 | 70 | 6 | ||
| ARB 2 050 150 060 S06 | 1.5RX5 | 5 | 15 | 60 | 6 | ||
| ARB 2 050 200 060 S06 | 1.5RX5 | 5 | 20 | 60 | 6 | ||
| ARB 2 060 200 060 S06 | 3RX6 | 10 | 20 | 60 | 6 | ||
| ARB 2 080 250 060 S08 | 4RX8 | 12 | 25 | 60 | 8 | ||
| ARB 2 080 300 100 S08 | 4RX8 | 12 | 30 | 100 | 8 | ||
| ARB 2 100 300 080 S10 | 5RX10 | 16 | 30 | 80 | 10 | ||
| ARB 2 120 300 080 S12 | 6RX12 | 18 | 30 | 80 | 12 | ||
