| AMT ABS Series – Soldering cutting tools | ||||||||||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

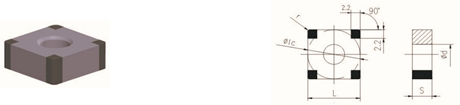

| SNGA120404-8S | 12 | 3.97 | 4.76 | 5.16 | 0.4 | T01020 T02020 S01020 S02020 | ● | |||
| SNGA120408-8S | 12 | 3.97 | 4.76 | 5.16 | 0.8 | ● | ||||
| SNGA120412-8S | 12 | 3.97 | 4.76 | 5.16 | 1.2 | ● | ||||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

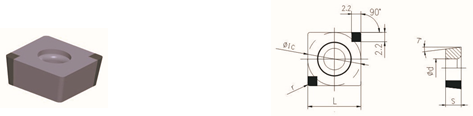

| SCGW09T304-2S | 9 | 9.525 | 3.97 | 4.4 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| SCGW09T308-2S | 9 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ● | |||
| SCGW09T312-2S | 9 | 9.525 | 3.97 | 4.4 | 1.2 | ● | ● | |||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

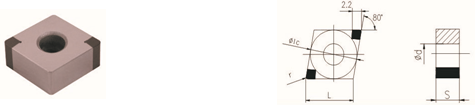

| CNGA120404-4S | 12 | 12.7 | 4.76 | 5.16 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| CNGA120408-4S | 12 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ● | |||
| CNGA120412-4S | 12 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ● | |||
| CNGA160404-4S | 16 | 15.875 | 4.76 | 5.16 | 0.4 | ● | ● | |||
| CNGA160408-4S | 16 | 15.875 | 4.76 | 5.16 | 0.8 | ● | ● | |||
| CNGA160412-4S | 16 | 15.875 | 4.76 | 5.16 | 1.2 | ● | ● | |||
| * Cutting edge can be customized | ||||||||||
| AMT ABS Series – Soldering cutting tools | ||||||||||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |
| CCGW09T304-2S | 9 | 9.525 | 3.97 | 4.4 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| CCGW09T308-2S | 9 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ● | |||
| CCGW09T312-2S | 9 | 9.525 | 3.97 | 4.4 | 1.2 | ● | ● | |||
| CCGW120404-2S | 12 | 12.7 | 4.76 | 5.5 | 0.4 | ● | ● | |||
| CCGW120408-2S | 12 | 12.7 | 4.76 | 5.5 | 0.8 | ● | ● | |||
| CCGW120412-2S | 12 | 12.7 | 4.76 | 5.5 | 1.2 | ● | ● | |||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

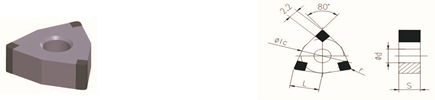

| WNGA060404-6S | 6 | 9.525 | 4.76 | 3.81 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| WNGA060408-6S | 6 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ● | |||
| WNGA060412-6S | 6 | 9.525 | 4.76 | 3.81 | 1.2 | ● | ● | |||
| WNGA080404-6S | 8 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ● | |||
| WNGA080408-6S | 8 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ● | |||
| WNGA080412-6S | 8 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ● | |||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

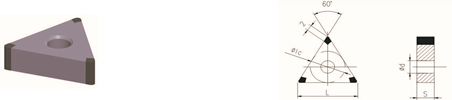

| TNGA160404-6S | 16 | 9.525 | 4.76 | 3.81 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| TNGA160408-6S | 16 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ● | |||
| TNGA140412-6S | 16 | 9.525 | 4.76 | 3.81 | 1.2 | ● | ● | |||
| TAGA220404-6S | 22 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ● | |||
| TAGA220408-6S | 22 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ● | |||
| TNGA220412-6S | 22 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ● | |||
| AMT ABS Series – Soldering cutting tools | ||||||||||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

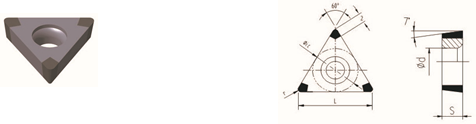

| TCGW110304-3S | 11 | 6.35 | 3.18 | 2.8 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| TCGW110308-3S | 11 | 6.35 | 3.18 | 2.8 | 0.8 | ● | ● | |||
| TCGW110312-3S | 11 | 6.35 | 3.18 | 2.8 | 1.2 | ● | ● | |||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

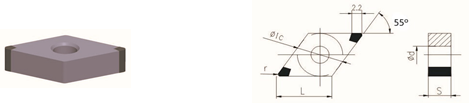

| DNGA110404-4S | 11 | 9.525 | 4.76 | 3.81 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| DNGA110408-4S | 11 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ● | |||
| DNGA110412-4S | 11 | 9.525 | 4.76 | 3.81 | 1.2 | ● | ● | |||
| DNGA150404-4S | 15 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ● | |||
| DNGA150408-4S | 15 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ● | |||
| DNGA150412-4S | 15 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ● | |||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |

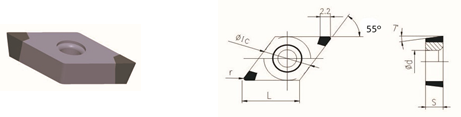

| DCGW11T304-2S | 16 | 9.525 | 4.76 | 4.4 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ||
| DCGW11T308-2S | 16 | 9.525 | 4.76 | 4.4 | 0.8 | ● | ● | |||
| DCGW11T312-2S | 16 | 9.525 | 4.76 | 4.4 | 1.2 | ● | ● | |||
| * Cutting edge can be customized | ||||||||||
| AMT ABS Series – Soldering cutting tools | ||||||||||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |
| VNGA160404-2S | 16 | 9.525 | 4.76 | 3.81 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ● | |
| VNGA160408-2S | 16 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ● | ● | ||
| VNGA160412-2S | 16 | 9.525 | 4.76 | 3.81 | 1.2 | ● | ● | ● | ||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |
| VBGW160404-2S | 16 | 9.525 | 4.76 | 4.4 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ● | |
| VBGW160408-2S | 16 | 9.525 | 4.76 | 4.4 | 0.8 | ● | ● | ● | ||
| VBGW160412-2S | 16 | 9.525 | 4.76 | 4.4 | 1.2 | ● | ● | ● | ||
 |
||||||||||
| Type | Dimension(mm) | Standard cutting edge | Grade | |||||||
| ISO | L | Øi.c | s | Ød | r | ABS6100 | ABS7200 | ABS9000 | ABS9300 | |
| VCGW160404-2S | 16 | 9.525 | 4.76 | 4.4 | 0.4 | T01020 T02020 S01020 S02020 | ● | ● | ● | |
| VBGW160408-2S | 16 | 9.525 | 4.76 | 4.4 | 0.8 | ● | ● | ● | ||
| VBGW160412-2S | 16 | 9.525 | 4.76 | 4.4 | 1.2 | ● | ● | ● | ||
| * Cutting edge can be customized | ||||||||||
