Solid CBN Cutting Tools

AMT ABN Series – Solid CBN Cutting Tools
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300
SNMN 090304 9 9.525 3.18 0.4 T01020 T01025 T02020 T02030 S01020 S01025
S02020 S02030 S05020 S10020		 ● ● ● ●
SNMN 090308 9 9.525 3.18 0.8 ● ● ● ●
SNMN 090312 9 9.525 3.18 1.2 ● ● ● ●
SNMN 090404 9 9.525 4.76 0.4 ● ● ● ●
SNMN 090408 9 9.525 4.76 0.8 ● ● ● ●
SNMN 090412 9 9.525 4.76 1.2 ● ● ● ●
SNMN 120404 12 9.525 4.76 0.4 ● ● ● ●
SNMN 120408 12 9.525 4.76 0.8 ● ● ● ●
SNMN 120412 12 9.525 7.94 1.2 ● ● ● ●
SNMN 150704 15 9.525 7.94 0.4 ● ● ●
SNMN 150708 15 9.525 7.94 0.8 ● ● ●
SNMN 201020 20 9.525 10 2.0 ●   ●
SNMN 201024 20 9.525 10 2.4 ●   ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300
RNMN 060400 6 6.35 4.76 0 T01020 T01025 T02020 T02030 S01020 S01025
S02020 S02030 S05020 S10020		 ● ● ● ●
RNMN 090300 9 9.525 3.18 0 ● ● ● ●
RNMN 090400 9 9.525 4.76 0 ● ● ● ●
RNMN 120400 12 12.7 4.76 0 ● ● ● ●
RNMN 120600 12 12.7 6.35 0 ● ● ● ●
RNMN 120700 12 12.7 7.94 0 ● ● ● ●
RNMN 150700 15 15.875 7.94 0 ●   ●
RNMN 160700 16 16.0 7.94 0 ●   ●
RNMN 190700 19 19.05 7.94 0 ●   ●
RNMN 200700 20 20.0 7.94 0 ●   ●
RNMN 201000 20 20.0 10.0 0 ●   ●
RNMN 250600 25 25.4 6.35 0 ●   ●
RNMN 250700 25 25.4 7.94 0 ●   ●
RNMN 251000 25 25.4 10 0 ●   ●
RNMN 251200 25 25.4 12 0 ●   ●
* Cutting edge can be customized
AMT ABN Series – Solid CBN Cutting Tools
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300

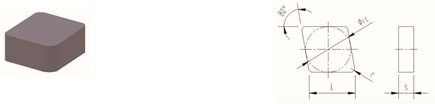

CNMN 090404 9 9.525 4.76 0.4 T01020 T01025 T02020 T02030 S01020
S01025 S02020 S02030		 ● ● ● ●
CNMN 090408 9 9.525 4.76 0.8 ● ● ● ●
CNMN 090412 9 9.525 4.76 1.2 ● ● ● ●
CNMN 120404 12 12.7 4.76 0.4 ● ● ● ●
CNMN 120408 12 12.7 4.76 0.8 ● ● ● ●
CNMN 120412 12 12.7 4.76 1.2 ● ● ● ●
CNMN 120704 12 12.7 7.94 0.4 ● ● ● ●
CNMN 120708 12 12.7 7.94 0.8 ● ● ● ●
CNMN 120712 12 12.7 7.94 1.2 ● ● ● ●
CNMN 120804 12 12.7 8.0 0.4 ● ● ● ●
CNMN 120808 12 12.7 8.0 0.8 ● ● ● ●
CNMN 120812 12 12.7 8.0 1.2 ● ● ● ●
CNMN 160708 16 15.875 7.94 0.8 ● ● ●
CNMN 160712 16 15.875 7.94 1.2 ● ● ●
CNMN 160716 16 15.875 7.94 1.6 ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300

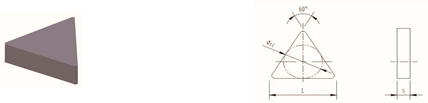

TNGN 110304 11 6.35 3.18 0.4 T01020 T01025 S01020 S02020 ● ● ● ●
TNGN 110308 11 6.35 3.18 0.8 ● ● ● ●
TNGN 110312 11 6.35 3.18 1.2 ● ● ● ●
TNGN 160404 16 9.525 4.76 0.4 ● ● ● ●
TNGN 160408 16 9.525 4.76 0.8 ● ● ● ●
TNGN 160412 16 9.525 4.76 1.2 ● ● ● ●

* Cutting edge can be customized
AMT ABN Series – Solid CBN Cutting Tools
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300
RCMN060400 6 6.35 4.76 0 T01020 T01025 T02020 S01020
S02020 S05020 S10020		 ● ● ● ●
RCMN090400 9 9.525 4.76 0 ● ● ● ●
RCMN090600 9 9.525 6.35 0 ● ● ● ●
RCMN120600 12 12.7 6.35 0 ● ● ● ●
RCMN120700 12 12.7 7.94 0 ● ● ● ●
RCMN150700 15 15.875 7.94 0 ●   ●
RCMN190700 19 19.05 7.94 0 ●   ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s b ABN6100 ABN7200 ABN9000 ABN9300
RCMX060400V 6 6.35 4.76 0.8 T01020 T01025 T02020 S01020 S02020
S05020 S10020 S20020		 ● ● ● ●
RCMX060600V 6 6.35 6.35 0.8 ● ● ● ●
RCMX090700V 9 9.525 7.94 1.0 ● ● ● ●
RCMX120700V 12 12.7 7.94 2.0 ● ● ● ●
RCMX151000V 15 15.875 10.0 2.0 ●   ●
RCMX191000V 19 19.05 10.0 2.0 ●   ●
RCMX201200V 20 20.0 12.0 2.0 ●   ●
RCMX251200V 25 25.4 12.0 2.0 ●   ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s b ABN6100 ABN7200 ABN9000 ABN9300
RCMX060400Y         T01020 T01025 T02020 T02025 S01020
S05020 S10020 S20020		 ● ● ● ●
RCMX060500V         ● ● ● ●
RCMX060700Y         ● ● ● ●
RCMX090700Y         ● ● ● ●
RCMX120700V         ● ● ● ●
          ● ● ● ●
* Cutting edge can be customized
AMT ABN Series – Solid CBN Cutting Tools
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s b ABN6100 ABN7200 ABN9000 ABN9300
SCGN090304 9 9.525 3.18 0.4 T01020 T02020 S01020 S02020 ● ● ● ●
SCGN090308 9 9.525 3.18 0.8 ● ● ● ●
SCGN090312 9 9.525 3.18 1.2 ● ● ● ●
SCGN090404 9 9.525 4.76 0.4 ● ● ● ●
SCGN090408 9 9.525 4.76 0.8 ● ● ● ●
SCGN090412 9 9.525 4.76 1.2 ● ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300
DNUN110404 11 9.525 4.76 0.4 T01015 T01020 T01025 T02020 T02025
S01015 S01020 S02025		 ● ● ● ●
DNUN110408 11 9.525 4.76 0.8 ● ● ● ●
DNUN110412 11 9.525 4.76 1.2 ● ● ● ●
DNUN110604 11 9.525 6.35 0.4 ● ● ● ●
DNUN110608 11 9.525 6.35 0.8 ● ● ● ●
DNUN110612 11 9.525 6.35 1.2 ● ● ● ●
DNUN150604 15 12.7 6.35 0.4 ● ● ●
DNUN150608 15 12.7 6.35 0.8 ● ● ●
DNUN150612 15 12.7 6.35 1.2 ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s b ABN6100 ABN7200 ABN9000 ABN9300
STB10K1 4.6 9.2 17 8.0 T10020 T15020 ●   ●
BL12K1-B 5.55 11.1 17 8.0 ●   ●
BL14K1-B 6.5 13.0 17 8.0 ●   ●

* Cutting edge can be customized
AMT ABN Series – Solid CBN Cutting Tools

Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300

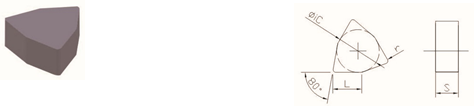

WNMN080404 8 12.7 4.76 0.4 T01015 T01020 T01025 T02020 T02025
S01015 S01020 S02025		 ● ● ● ●
WNMN080408 8 12.7 4.76 0.8 ● ● ● ●
WNMN080412 8 12.7 4.76 1.2 ● ● ● ●
WNMN080604 8 12.7 6.35 0.4 ● ● ● ●
WNMN080608 8 12.7 6.35 0.8 ● ● ● ●
WNMN080612 8 12.7 6.35 1.2 ● ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300

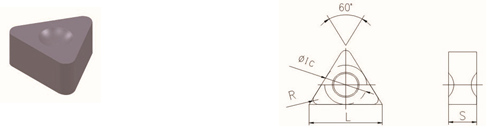

TNM0160604 16 9.525 6.35 0.4 T01020 T02020 S01020 S02020 ● ● ●
TNM0160608 16 9.525 6.35 0.8 ● ● ●
TNM0160612 16 9.525 6.35 1.2 ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300

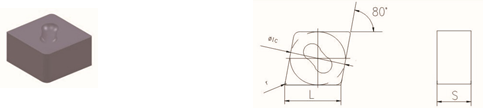

CNML120604 12 12.7 9.525 0.4 T01020 T02020 S01020 S02020 ● ● ● ●
CNML120608 12 12.7 9.525 0.8 ● ● ● ●
CNML120612 12 12.7 9.525 1.2 ● ● ● ●
* Cutting edge can be customized
AMT ABN Series – Solid CBN Cutting Tools
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300
DNML110604 11 9.525 6.35 0.4 T01020 T02020 S01020 S02020 ● ● ● ●
DNML110608 11 9.525 6.35 0.8 ● ● ● ●
DNML110612 11 9.525 6.35 1.2 ● ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300
RCM0090600 9 9.525 6.35 ­ S02020 ● ● ● ●
RCM0120700 12 12.7 7.94 ­ ● ● ● ●
RCM0150700 15 15.875 7.94 ­ ● ● ●
RCM0020100 20 20 10.0 ­ ● ● ●
Type Dimension(mm) Standard cutting edge Grade
ISO L Øi.c s r ABN6100 ABN7200 ABN9000 ABN9300

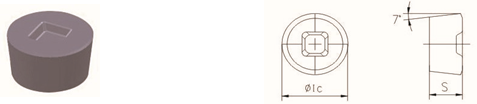

RCMS090600 9 9.525 6.35 ­ S02020 ● ● ● ●
RCMS120700 12 12.7 7.94 ­ ● ● ● ●
RCMS150700 15 15.875 7.94 ­ ● ● ●
RCMS201000 20 20 10.0 ­ ● ● ●
* Cutting edge can be customized
